With Pro Tools being as ubiquitous as it is, it’s a useful addition to pretty much any studio setup. Building a Pro Tools rig, however, can take a large bite out of anyone’s budget – but it doesn’t really have to be that expensive, as demonstrated in this guide by Jeff Shiffman, co-founder of Boom Box Post and Supervising Sound Editor on Teenage Mutant Ninja Turtles and The Loud House.

Along with his colleague Kate Finan, the team has built several powerful Pro Tools rigs without spending a fortune. Here’s how they do it:



The modern post production professional is inevitably tied to some kind of software. For a sound designer, that software is undoubtedly Pro Tools. There are other options out there but the truth is none have come close to breaking through the stronghold Avid has on the market. I haven’t walked into a single professional sound facility that wasn’t running one iteration or another. And for good reason. Pro Tools makes our job fast and efficient, and for my part is pretty much transparent in the creative process. Sure, each new version comes with glitches and quirks but when you add it up, it’s a stellar piece of software. Affording this software is another story.

When I started in the industry, on top of purchasing a decent computer, having a legit rig meant shelling out insane sums for stacks of HD cards paired with sync and I/O devices. Even then, there were limitations to track count and processing ability. Editors were keenly aware of just how far they could push their gear before things started to go haywire.

These days, things are different. Computers have long since become powerful enough to handle the heavy lifting required for basic editorial and mix and Avid is moving toward a more software based business model. So what makes for the best balance of power and affordability? In starting Boom Box Post, we’ve built a lot of rigs and I think we’ve struck a great balance. Here’s how we go about building Pro Tools systems that are powerful and relatively affordable.

You’re not going to mix the next summer blockbuster feature, but you’ll do just fine with about 95% of the work out there.

A few caveats. This system has more than enough steam to edit and mix a significantly track heavy television series or medium size film. You’re not going to mix the next summer blockbuster feature, but you’ll do just fine with about 95% of the work out there. In the same regard, there are many cheaper ways to get your hands dirty with Pro Tools. If you aren’t in the position to take on this kind of work just yet, maybe jump in with a Mac Mini and standard Pro Tools and bookmark this post for when the need arises.

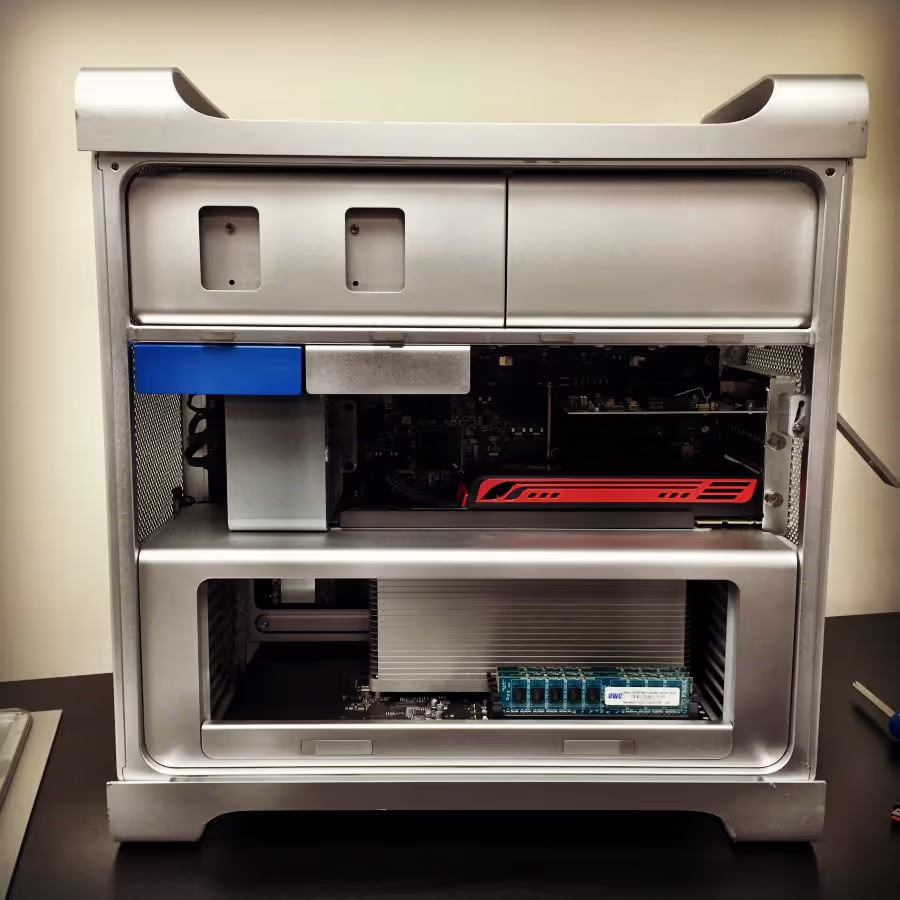

Computer:
The backbone of your rig needs to be reliable. Time tested and rock solid, I like the Mac Pro models from early 2010 (code name Nehalem). You’ll do fine with a Quad-Core 2.8 Ghz and finding a refurbished model on ebay is a snap (search for this model number: MC250LL/A). They seem to get significantly cheaper every month and there’s a glut of them to choose from. These computers sport dual display output (a must) and multiple Firewire 800 (which we still utilize) and USB ports. Adding PCI-E cards, serial drives and RAM is dead simple. Despite being over 5 years old, these are standards that are still widely supported by third party manufacturers making this model the sweet spot where technology meets price point.


Memory:
Aim for 24-32GB of RAM. Short of this, try and get one on the cheap with as little RAM as possible and buy a RAM kit to easily upgrade this yourself. I like macsales.com for their efficient website portal and great prices.


Storage:

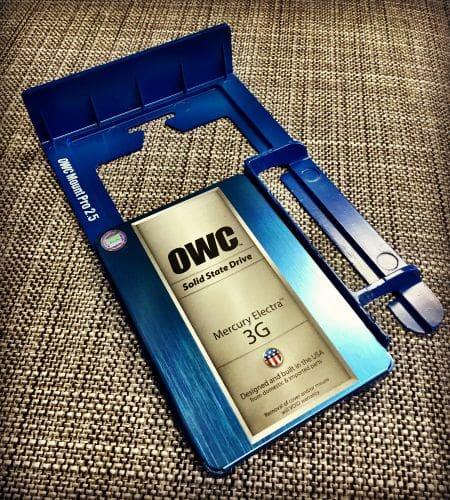

Adding a solid state to a Pro Tools machineI’m loving SSD’s (solid state drives). If you haven’t yet worked on one, you’ll be amazed at how fast they power up and shut down your computer. Restarts are a fact of life and you’ll quickly appreciate the time saved. Plan on grabbing a 240GB SSD to use as your main system drive. On top of all your application needs, this is more than enough storage to cover the inevitable random downloads and other miscellaneous junk that bogs down a system drive. Fill up two more HD spots with dedicated media drives. One drive each for projects and video files; a 2TB and 1TB respectively. This will get me through a handful of series before I need to offload to our backups (which you should be doing regardless). Of course your mileage may vary. Unfortunately they aren’t making SSD’s large (and cheap) enough for these yet so I go with the reliable Western Digital Caviar Black drives.

Pro Tip: You’re not going to find an older model Mac Pro with an SSD system drive. Since you’re going to replace this drive on any rig, should you find a used computer for sale with a large (1TB or above) system drive, take advantage of this by planning to format it as one of your two media drives.


Pro Tools Software and Interface:
For track count and surround capabilities, any working sound designer and mixer will probably need to go with Pro Tools HD. That’s the call we’ve made. I like the HD Native systems and with these Mac Pro computers, the PCI-E card is the logical choice. Going with Thunderbolt means jumping in on a much newer (and thus expensive) computer. Since it’s not internally installed, thunderbolt has the advantage of possibly graduating to a newer system down the line, but for my money overall I’m willing to gamble that neither PCI-E or Thunderbolt is a guarantee, so you might as well go with the cheaper complete system option. For an audio interface, we use the OMNI HD I/O.

It’s a simple clean solution with lots of power and options

A simple D-sub cable gets you all the XLR outs you need for surround. As a bonus, you get a really great preamp for recording on the fly as well as some optical ins and outs (which we use to monitor Soundminer through the internal sound card). It’s a simple clean solution with lots of power and options.

Pro Tip: You can find any manner of AVID products online, usually brand new and cheaper than retail. Even better, I’ve found that a lot of these listings are coming from a few sources. Usually online music shops and the like. You’d do well to hit them up directly and ask for a sales quote. Chances are they are trying to meet a certain price point on Ebay to cover fees and would be willing to work directly with you for a cheaper price point. Find yourself a sales rep you like working with and make the connection. Going forward, this relationship can end up being very valuable for both parties as you will inevitably grow your gear along with your career.



Popular on A Sound Effect right now - article continues below:



Latest releases:
  • Mechanical Gearbox Play Track 3551 sounds included, 279 mins total $149.99

    We've ventured to obscure boutiques, prop houses and vintage shops to capture mechanical contraptions from around the world. Ranging from bizarre creations, to steampunk gadgetry, gizmos and machines, GEARBOX clocks in at over 10 GB of high definition, precision mastered sounds spanning across 2987 construction kit sounds and 584 designed sounds.

    GEARBOX equips Sound Designers with a literal toolbox of mechanical gadgetry. Ranging from tiny to huge, GEARBOX's machines and gizmos provide coverage for interacts, mechanism, machine or device in your scene or game.

    INTRODUCING BUILDING BLOCKS

    In addition to CONSTRUCTION KIT and DESIGNED SOUND content, GEARBOX features BUILDING BLOCKS. This category of sound consists of designed phrases and oneshots utilized for our designed machinery, empowering Sound Designers with maximum flexibility when trying to get that particular phrase from an existing DESIGNED SOUND. GEARBOX features over 468 BUILDING BLOCKS ranging from levers, hits, grinds, snaps, and more.

    Video Thumbnail
    Add to cart
  • This is a unique bicycle library that captures this characteristic bike in clean, quiet, nicely performed true exterior rides. Including multiple perspectives, speeds and actions. From fast passbys on asphalt to slow onboard recordings and smooth stops.

    The UglyBike is a typical old bicycle that’s working fine, but needs some TLC. It is a bicycle that’s just average, a little rattle a gentle scrape, a bike that everyone has had but got traded in for a newer one. A story of unrequited love.. :)

    Speeds and actions:
    Three speeds. Departures from slow, medium to fast getaways. Arrivals from slow stops with gently squeaking handbrakes to heavy stuttering skids.

    Five perspectives:
    1. Onboard Front: captures the whirring tire and surface sound.
    2. Onboard Pedal: nice overall combination of pedaling, crank creaks, chain rattle, tire and surface sounds.
    3. Onboard Rear: close up sound of the rear axle, with chain, sprocket and switching of gear.
    4. Tracking shot: mono recording of the passby, keeping the bike in focus while passing by.
    5. Static XY shot: stereo recording of the passby that emphasizes speed.

    Overview of perspectives and mic placement:

    Onboard recordings are 2-3 minutes long depending on speed. Higher speeds > shorter duration.
    All 3 onboard mics are edited in sync with one another to make layering easy.
    All Passbys, Arrivals and Departures move from Left to Right.

    Metadata & Markers:
    Because we know how important metadata is for your sound libraries we have created a consistent and intuitive description method. This allows you to find the sound you need easily, whether you work in a database like Soundminer/Basehead/PT Workspace work, or a Exporer/Finder window.

    However, we are aware that some people have different needs for different purposes, so we’ve created a Metadata Reference Guide that explains the structure. And because we’ve automated the metadata proces, you can be confident that a ‘find & replace’ command will always replace all instances.

    Download our Metadata Reference Guide

    Download complete metadata PDF

    If you have any questions about this, contact us!

    Additionally, we added Markers to some wave files, so specific sound events are easy to spot in Soundminer or other database apps.

    Need more?
    The UglyBike library is part of the complete ‘City Bicycles’ library package available at www.frickandtraa.com. It consists of all 4 bicycles and includes additional surfaces and extras ranging from one-off  bicycle passes captured in the city and bounces and rattles. The extra bicycles surfaces and additional effects are also available seperately here on ‘a Sound Effect’. If you’ve bought a single library and want to upgrade to the full package, contact us for a reduced price on the complete City Bicycles library. Every part of City Bicycles that you paid for will get you an extra reduction on the full package.

    Video Thumbnail
    Responses:

    344 AUDIO:City Bicycles has a plethora of content, for a great price. The perfect balance between a great concept, great presentation and outstanding execution, lands them an almost perfect score of 4.9..

    The Audio Spotlight: City Bicycles is worth getting if you are in need of great sounding and well edited bicycle sounds.

    Watch a video created by Zdravko Djordjevic.

    Video Thumbnail



    Add to cart
  • Environments Museums & Galleries Play Track 272 sounds included, 800 mins total $100 $80

    This library features a wide range of recordings from various museums and galleries, each differentiated by the nuances of their size and space. All recordings feature pristine echos, walla and movement. The library includes stereo & 5.0 recordings from:

    • War Museums
    • History Museums
    • State Museums
    • Science Museums
    • Art Galleries
    • Photography Galleries
    • State Galleries

    All sounds were recorded using a stereo pair of DPA 4060s, DPA 5100, Sound Devices Mix-Pre 6 and Sound Devices 788T.

    20 %
    OFF
    Ends 1556056800
    Add to cart
  • The American M5 High Speed Tractor includes over 20 gigabytes of recordings of a WWII US military vehicle with a Continental 6572 six-cylinder petrol engine with 207 horsepower. 188 sound fx document a full suite of performances from M5, also known as versions M5A1, M5A2, M5A3 and M5A4.

    The performances include starting, idling, departing, arriving, and passing by from 6 exterior perspectives at slow, medium, and fast speeds. 10 additional perspectives feature motor, interior, exhaust, tracks, and other locations that capture idles, driving, and steady RPMs from onboard the tractor.

    Includes extensive Soundminer metadata.

    Add to cart
  • Cars Volvo 242 DL 1975 Play Track 364 sounds included $249

    The Volvo 242 sound fx collection includes 271 sounds in 13.51 gigabytes of audio. The 242 is a DL 1975 version of the car, also known as models 240, 244, and 245. It features 25 takes of recordings from the Swedish vehicle and its 4-cylinder B20 A, 82 horsepower engine.

    16 synchronized perspectives capture both onboard and exterior performances. Eight onboard perspectives (12 channels, including 4 in AMBEO) recorded driving at steady RPMs, with gearshifts, and ramps using microphones mounted in the engine, interior, and exhaust. Eight other exterior perspectives (18 channels) showcase driving at fast, medium, and slow speeds approaching, departing, and passing by. There are also steadies in neutral, blips, and performed effects, as well as an Altiverb impulse response.

    All clips have 18 fields of Soundminer, BWAV, and MacOS Finder metadata.

    Add to cart

Need specific sound effects? Try a search below:


Furniture:
Audio desks are fancy and extremely professional looking. They are also very expensive. You can easily double your room budget just by picking out a decent sized piece. Instead, I suggest you go with a desk that speaks to your personality and doesn’t break the bank. As long as it has enough room for a keyboard and perhaps a shelf for a couple of visual monitors, you’ll be good to go.
Using furniture from Ikea for studio building
Ikea has plenty of options, most of which are highly customizable. Picking up stands for your audio monitors will give you the opportunity to pick a much smaller desk and to be very deliberate with their placement. You can find stands like the On Stage SMS6000 that do the trick for a very reasonable price. I prefer fancier looking ones for my front Left and Right (since they are fully visible), but if cost is an issue you can always start with a these in a stereo rig and then graduate them to the rear when you upgrade to 5.1.

A professional audio rig doesn’t have to break the bank. We’ve found that this formula is the best possible solution for where things stand today. That said, the technology and price points are constantly changing. The important thing to note here is to utilize creative thinking not only in your work, but also when purchasing gear for yourself. There are many creative solutions to finding the right fit. All you need is a little time to think it through… and a lot of patience for Ebay.

Disclaimer: Neither the author, nor Boom Box Post, Inc. or A Sound Effect has been paid to endorse any of the aforementioned products.

A big thanks to Jeff Shiffman for the insights on affordable Pro Tools rig building. You’ll find him on Twitter here, and his colleague Kate Finan here – and they have a blog up over at Boom Box Post here.
