audio workflow improvement Asbjoern Andersen


Repetitive strain injury (RSI) can result from spending long periods of time on a computer. If you don’t experience it yet, you may well in the future. A Wacom tablet helped Nick Granville-Fall manage his audio workflow and health better than a mouse alone - here are his experiences, with tips on how to set things up for audio work:
Written by Nick Granville-Fall
Please share:

I gave a lecture last year as alumni about freelancing in the creative audio and media industries. One of my slides showed a picture of a Wacom tablet. I’d expected some hands to show or a few head nods when I asked if anyone knew what it was… to my surprise no one seemed to know. Being involved with animators, motion designers and creative studios, I’ve seen Wacom’s products all over desktops of visual creatives. However there is no such thing for the audio discipline, after all, we are always being forgotten about right?

All computer users and professions could benefit from cutting down on mouse time.

When I think of Wacom’s brand it does cater very heavily towards visual designers. Have a read at some marketing for their new 3D Pen: ‘For creative professionals working in game design, animation, VFX, VR and AR, 2D and 3D art and industrial design’.  Where’s the audio mention?! All computer users and professions could benefit from cutting down on mouse time. After all, holding a pen is a far more natural way to interact with a computer.

I remember trying a Wacom years ago when my graphic design buddy Lee had one and still does. I found it a bit strange. It didn’t feel that natural to use at first but I would urge anyone to hold out past this stage, it doesn’t take long. The technology has further improved and the Intros Pro and Pro Pen 2 are excellent. I had preconceptions that only artists and graphics professionals used these, ‘I wouldn’t use this for audio!’ With Wacom’s marketing, it’s not hard to see why I thought this. I hope Wacom can challenge and amend this assumption about what industries typically use their products.

I started suffering RSI quite a lot when I got busier in the studio. I was working on audio projects and building up my client base, saying yes to every job. I realised my Apple mouse wasn’t doing my wrist any favours. I looked into ergonomic mice and ordered two different ones to try. I found that one of them was good but the scroll wheel position wasn’t working for me. If you are using only a mouse then the scroll wheel is important, not so much with a Wacom as I will later explain. I sent both mice back in the end and looked for other solutions.

I remember watching Martin Stimming showing his audio workflow using a Wacom Cintiq 13” with Cubase. I had a lot of questions, how well would it work with the software I used? I researched forums online but there wasn’t a huge amount of information or videos on using these with audio workflows. This inspired me to try one out, if I didn’t like it then my plan was to return it and hope I’d get a refund. I didn’t need the Cintiq model where you draw directly on the screen so I went for the cheaper, Intuos Pro Medium. This meant I could use my existing monitor screen and I felt having it setup flat on a desk might be better for ergonomics and posture.



Stimming on Wacom Cintiq13 - Tutorial


Martin Stimming demonstrates his audio workflow using a Wacom Cintiq in Cubase



Configuration

It took me a bit of time to get used to using a pen, I’m left-handed which is easy to set up. I changed the size of the tablet working area to be smaller. In reducing the physical distance the pen travels, means it’s easier to move the mouse cursor across a 34” ultrawide monitor. Wacom’s software also allows you to map key functions used in any application to the pen and tablet’s express keys (buttons). Most audio applications aren’t very customisable (except Reaper) but any application can have its own preferences for both pen and tablet. You can map any application’s keyboard shortcuts to be triggered. You can pretty much do anything with it, it’s very flexible. Below you can see I’ve setup one of the pen buttons to trigger opt + cmd when in Ableton.

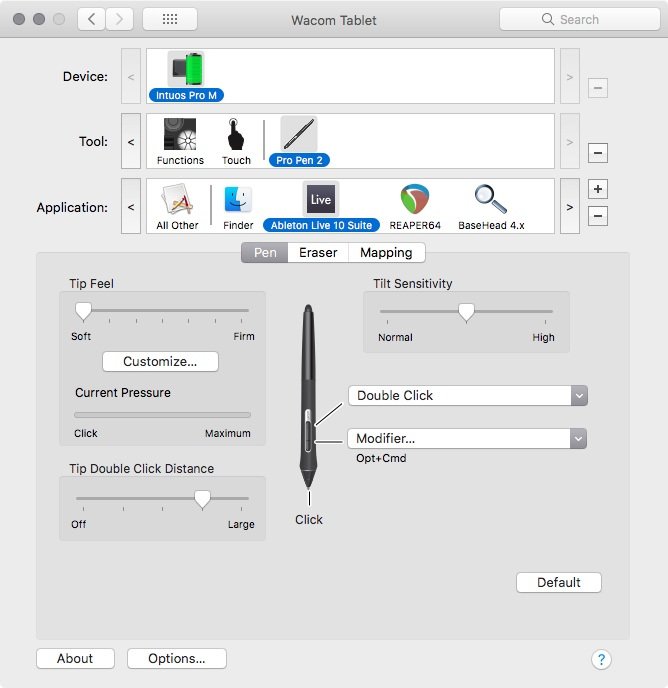

Customized Wacom tablet settings

I found actually moving the mouse cursor around with accuracy using a pen very satisfying and quick to grasp. I think I just got it this time unlike years ago. The two buttons on the pen (which can do what you like) took a little longer for them to feel natural in my hand. I didn’t use them at all for the first month or so but then I realised it was worth learning and using them. This made my workflow much easier and quicker.


Popular on A Sound Effect right now - article continues below:


Trending right now:

  • We freely confess: we love the idea of the magical sound of glitter. We love it when it sparkles, shines and shimmers. But no other sound libraries seem to get it right.

    So we made Glitter to offer a huge range of designed and source sparkling magic sound effects to your arsenal. Whether you need to complement particles effects, magical spells or any other fabulous wizardry, you can count on this minty fresh library to deliver dazzling audio, over and over again.



    The Glitter sound library is built in two distinct sections: Source and Designed. The Designed section offers rich and inspiring sounds ready to be dropped in your project. The source folder includes various recordings used to create this library, should you want to wander down the path of creating your own glittering adventures.

    Created with crackling passion by our fairy own sound designers, this masterful curated library will be sure to bring your project to a sparkling new level of awe-inspiring wonderment.

    34 %
    OFF
  • “European Birds 2” is a sound library containing many recordings of 56 different species of birds, with a focus on isolated recordings of individual birds. All sounds were recorded in England, and all recorded species can be found in continental Europe. Many recorded species can also be found in varying areas of Asia.



    Includes:

    • Pleasing sounds from songbirds such as Robins, Blackbirds, Finches and Wrens
    • Familiar sounds of Pigeons and Doves
    • A variety of water birds including Moorhens, Coots, and Geese
    • Raspy calls of Crows and other birds from the corvid family
    • Melodious birds of open farmland, such as Skylarks and Yellowhammers
    • Chaotic songs of summer migrant warblers
    • Forest birds such as a Tawny Owl, Cuckoo and Green Woodpecker
    • and more! (For a full list of species, see the contents summary)



    Features:

    • 950+ audio files in 24 bit 96kHz quality
    • WAV format
    • “Multi” and “One Shot” files provided
    • UCS compliant file naming and metadata, allowing for easy searching in sound library management tools
    • Available for commercial or personal use without attribution



    View a summary of included sounds here

    View a full list of included files here

  • Destruction & Impact Sounds Cataclysm Play Track 1482 sounds included $195

    Cataclysm is a vast collection of recorded, synthesized and designed sounds created to support important destructive moments and add a stronger sense of extreme consequence to any sound.

    The recorded section of library features elements such as flash powder explosions, propane cannon blasts and artillery cannons recorded in unique natural environments with violent transients and lush, long and varied tails. It also features falling trees, forge burners, large trebuchet wood groans, rock smashes as well as more ordinary items recorded and designed to feel like an over the top version of themselves such as vacuum cleaner suctions, metal vase holders, ground pounders and more.

    The synthesized section of the library features equally rich textures in the form of explosion sweeteners, other-worldly environmental reflections, scorching energy risers and more.

    Finally, recorded and synthesized content was employed to develop the designed section, where the hyperrealism of the recordings meets the clean yet aggressive textures of the synthesized section in catastrophic assets themed around the library’s title.

    Bonus: Two extra libraries included for free:
    This library also includes two additional releases from Mattia Cellotto - for free: Crunch Mode delivers 230 crunchy sounds made with a variety of vegetables, fresh bread, pizza crust and a selection of frozen goods. The Borax Experiment gets you 158 squishy, gory, slimy and gooey sounds.
  • Train Sound Effects Steam Trains Play Track 175 sounds included $40

    The Steam Trains library delivers 175 sound effects of three different types of steam train engines, and the clatter, rattle, and grinding of wagons.

    The collection includes riding, idling, pass-bys, departing and arriving trains, bells, whistles, steam blasts, platform atmospheres, and doors and windows.

    Engines are the heavy Santa Fe 2-10-2, the Bavarian BB 0-4-4-0 Heavy Mallet, and a 4 Wheel Switcher 0-4-0 light railway. Also included are door and window handling effects of passenger cars

    Each engine is well documented and listed in full Soundminer metadata.

    The Steam trains library also includes a “Specification Sheet” with detailed information about the trains and environments.

    Recorded with a Schoeps MK4/MK8 MS, paired with a Sound Devices 702 recorder. Some takes provide an alternative mix with recordings from an additional Sony PCM-D recorder.


Latest releases:

  • Animal Sound Effects The Animal Symphony – Watusi Play Track 183 sounds included, 10 mins total $12

    The Animal Symphony will be a series of animal recording libraries, created to offer a wide variety of authentic animal sounds. Over the next few months, each installment in this series will capture the essence of different animal species.

    General description:
    The Animal Symphony – Watusi” features a total of 52 audios, with 183 individual sounds of Watusis mooing, all recorded in exceptional quality. Using two high-end microphones, the Sennheiser MKH 8050 and an EM258 capsule microphone, we have managed to capture every detail and nuance of these natural sounds. Each recording was made at a 192 kHz, 24-bit, ensuring professional clarity and depth.

    Featured Features:
    – Variety of Watusi Sounds: Enjoy a wide range of Watusi sounds, from soft moos to powerful calls, perfect for adding realism and authenticity to your projects.
    – Diversity in Recordings: With multiple takes and variations, with long, short and group moos, so this library offers the necessary flexibility for any type of production that requires this type of animal.
    – Careful Editing: All recordings have been carefully edited to eliminate any external noise, such as birds, wind or people, ensuring pure, clean sounds.

    This collection is ideal for a variety of applications:
    – Video games: Add realism and depth to the natural environments of your games.
    – Cinema and Documentaries: African environment and scenes that require authenticity in fauna.
    – Educational Applications: Use these sounds in educational projects to teach about wildlife and animal behavior.
    – Multimedia Projects: Ideal for any project that seeks to enrich the user’s listening experience.

    Technical details:
    – Total Audios: 52
    – Total Sounds: 183
    – Format: 192kHz/24bit
    – Equipment Used: Sennheiser MKH 8050 Microphone and EM258 Capsule Microphone

    License:
    The sounds from “The Animal Symphony – Watusi” are available under a royalty-free license, allowing their use in multiple projects without additional costs or royalties. You can use these sound effects in your games, trailers, Kickstarter campaigns, and more, as many times as you like.

    20 %
    OFF
    Ends 1717711199
  • This library covers the sounds of the Trabant 601, equipped with a two-cylinder, two-stroke Otto-type engine from the late 1980s.

    The driving section contains 48 tracks with a total length of about 36 minutes. These tracks include engine ramps and driving sequences at various constant RPMs, suitable for game implementation. Additionally, there are takes featuring more common driving and pass-bys, which are better suited for linear media usage. Interior and exterior mixes are also included.

    The foley section comprises 23 tracks with a total length of 8 minutes. It covers all basic sounds, such as opening and closing doors, hood and trunk, gearstick shifts, handbrake usage, and horn sounds. These sounds were primarily captured from a close perspective using a shotgun microphone.

    Microphone setup:

    • Sennheiser MKH8040 (ORTF) – Cabin
    • Neumann KMR81i – Cabin / Foley
    • Neumann KM184 – Exhaust
    • Shure SM11 – Engine bay
    • Shure VP88 (M/S) – Exterior
    • Tascam DR40 (XY) – Exterior
  • Sports Sound Effects Pool Play Track 351 sounds included $5.99

    This is a sound library containing the sounds of cue sports games such as pool or snooker. Includes a range of sounds such as ball interactions, potting, breaking, and more, with sounds from both a standard set of 2″ pool balls and a smaller set too.



    Features:

    • 350+ audio files in 24 bit 96kHz quality WAV format
    • “Multi” and “One Shot” files provided for most sounds
    • All files are metadata-tagged, allowing for easy searching in sound library management tools
    • UCS compliant file naming
    • Available for commercial or personal use without attribution



    View a summary of included sounds here

    View a full list of included files here

    33 %
    OFF
  • 30 Alicante sound effects recordings of urban street life from a southern Spanish city.

  • Soar across the skies with Boeing 737 jet airliner interior clips from idling, taxiing, flying, landing, and others.

Need specific sound effects? Try a search below:


Key differences – mouse to pen

NAVIGATION

You can make most, if not all software, work the same way using the Wacom pen.

With no scroll wheel on a pen, you have to find an alternative method for quickly navigating and moving around your software’s screen estate. You’ll find most DAWs have a ‘hand tool’ where you can drag the screen about rather than scroll vertically or horizontally. In Ableton on a mac, you access this via the key commands opt + cmd & drag the mouse. I use a button on my pen that triggers both commands, I drag the pen around on the tablet to move the screen. Logic Pro X uses ctrl + shift & drag pen etc. I have this setup the same in Reaper to hold the same pen button and drag to move around. I really like this way of working so I don’t miss the scroll wheel method at all. The additional advantage is you can make most, if not all software, work the same way using the Wacom pen.

DOUBLE CLICK

You can double click with a pen as you would on a mouse, just double tap your pen on the tablet surface. Sometimes however even customising the response speed etc, it doesn’t always register. This can be frustrating for the obsessive but fear not. You can either set up one of the pen’s buttons to double click (with a single click) or you can assign an express key (button on the tablet) to do this. Problem solved!

ZOOMING

Again with there being no scroll wheel on a pen you can either use the touch ring on the tablet or just use your DAWs keyboard zoom shortcuts. I find this is fine. Most DAWs give you a good amount of zoom shortcuts.

EXPRESS KEYS

You can assign any keyboard shortcut in your DAW to one of these buttons. If there is something you use a lot and would rather move it to a button on the tablet, rather than use your keyboard you can. This is useful if you don’t like the position of the keyboard shortcuts and can’t re-assign them to different keys etc. In software like Reaper, you can map anything anywhere but a lot of DAWs don’t have this luxury.


Conclusion

Once I’d got a fluid workflow together with the Wacom, I stopped using my Apple mouse because I loved using a pen so much. Even then, doing a solid 8 hours of work using the pen will likely cause some ache and RSI. It’s a huge improvement for reducing RSI using the Wacom, but it doesn’t mean only using this for long periods of time will totally prevent RSI. Using any device for that long will cause fatigue, therefore you should build in 5-minute breaks per hour worked.

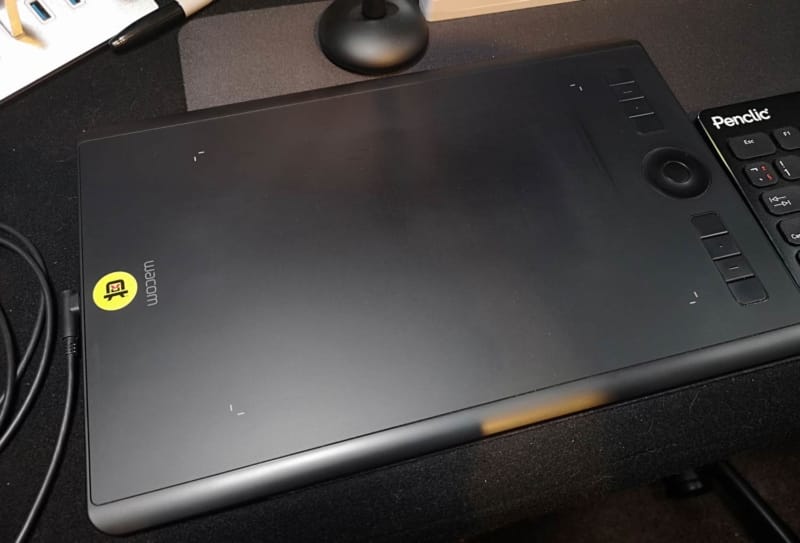

A Wacom tablet on a desk

I find now it’s best to balance workload across both of my hands. I use the Wacom for any sound design/audio post using Reaper. For any music I tend to use Ableton, normally swapping between both the Wacom and mouse. For general computer use emails, file management etc, I use the mouse. I finally replaced my Apple mouse with Contour’s Unimouse.

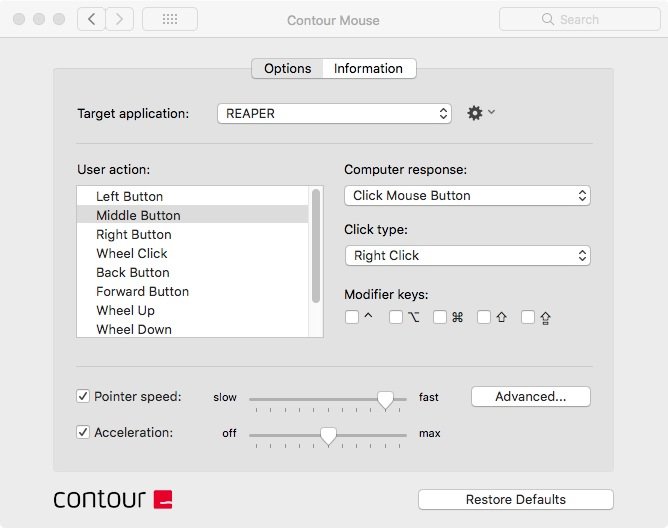

Reaper settings for the Contour mouse

Using both devices means I am spreading the workload and fatigue across both hands and wrists rather than one.

This is a comfortable mouse that has customisable software like the Wacom. Its flexible design allows you to change the steepness of the angle of where your hand and thumb rest, greatly reducing RSI. Using both devices means I am spreading the workload and fatigue across both hands and wrists rather than one. It’s a huge improvement to my workflow and health, I hope it can do the same for you.

A big thanks to Nick Granville-Fall for giving us some tips on how to improve our workflow and quality of life!
