Asbjoern Andersen


Ever thought about giving your studio a makeover - or perhaps you've simply outgrown your home studio? Here's the story on how Alex Gregson from 344 Audio did a major studio rebuild, complete with tips, lessons learned, and thoughts on whether you should go about such a huge project in the first place:
Written by Alex Gregson. Images courtesy of Alex Gregson
Please share:


Thinking about rebuilding your studio? Here are some questions to consider before you start: First of all, you need to ask yourself why building a dedicated studio space is right for your creative business. Will it help you accomplish a goal or work with new clients? Will it allow you to provide a better service?

You will then need to consider your budget. Is your budget realistic? Have you built an itemised breakdown? Where can you save money?

Next will come your plans for building soundproofing, acoustic treatment, interior design and equipment. Will these add value? Can you do the building yourself? Do you really need the best piece of equipment on the market?

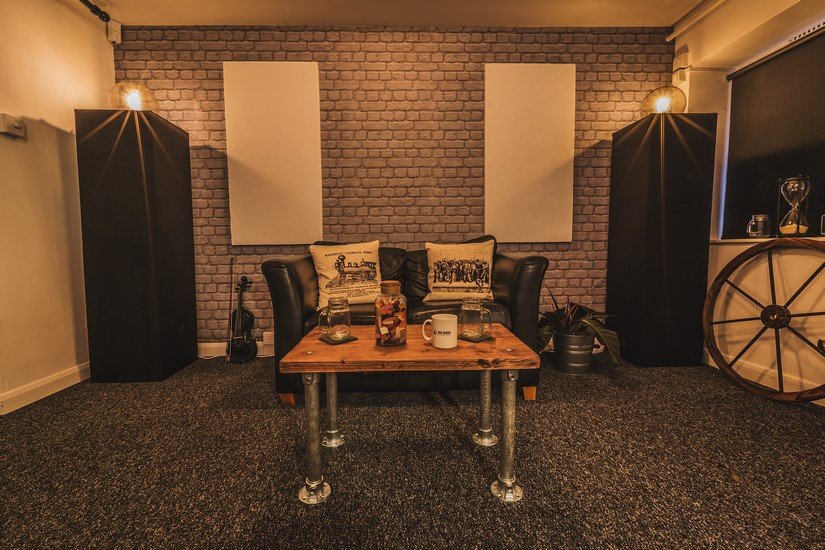

The sitting area of the studio

Once you have figured out the basics and accepted that you want to go on this journey, you will need a marketing strategy to promote your studio in a way that attracts the clients you want to work with there.

You will have to ensure you are ready to take such a big step for your business, in terms of time and financial investment

The number of people working in your facility will also factor into your planning, does your premises have enough space?

With all this considered you will have to ensure you are ready to take such a big step for your business, in terms of time and financial investment.


Rebuilding The 344 Audio Studio: The Planning

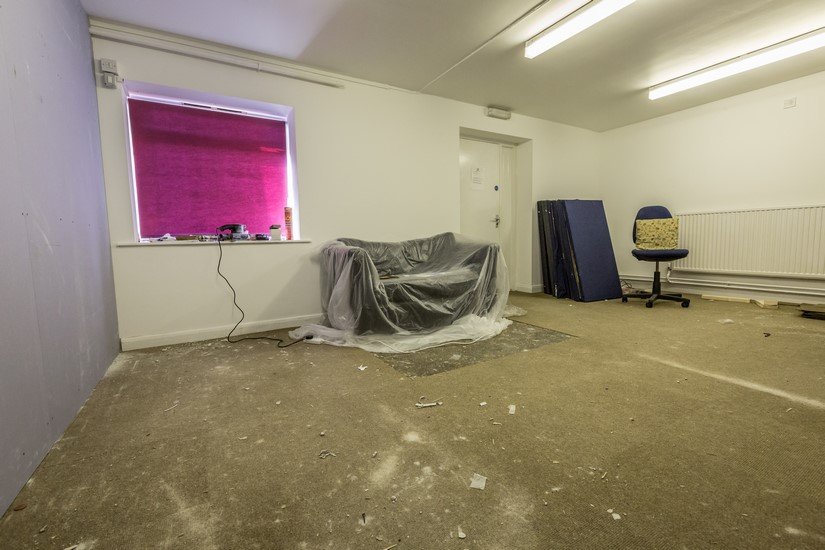

An empty construction area with only a plastic-covered couch

The reason we wanted to rebuild our studio was to provide a better service to the clients we currently have and to the clients that we want. Previously, we worked from a home studio and rented facilities for larger projects, which was less comfortable for both us, Directors and other members of the sound team. Having your own studio allows you to choose the gear, workflow and look that is right for your business.

We had a budget of £20,000, which had to cover everything from rental deposits to equipment costs and soundproofing walls. We managed to save a lot of money by building soundproofing and acoustic treatment ourselves. We came in under budget, which left space for future investments in our second room. Every piece of equipment purchased was carefully planned to create an ecosystem that allows for a faster creative workflow and a high quality signal path throughout, while remaining cost conscious.

Having your own studio allows you to choose the gear, workflow and look that is right for your business

We hired a marketing agency to help us get into both local and national industry publications, which has already provided some excellent opportunities for the studio. We also have a list of current clients to invite to the new facility and a list of clients that we would like to work with in the future who we will be contacting.

With a view for expansion, we have an additional room which will house interns and freelancers to help when working on larger projects. We have a financial plan to allow for a return on investment and aim to get the most out of the equipment we have purchased and the room that we have built.


Rebuilding The 344 Audio Studio: The Execution

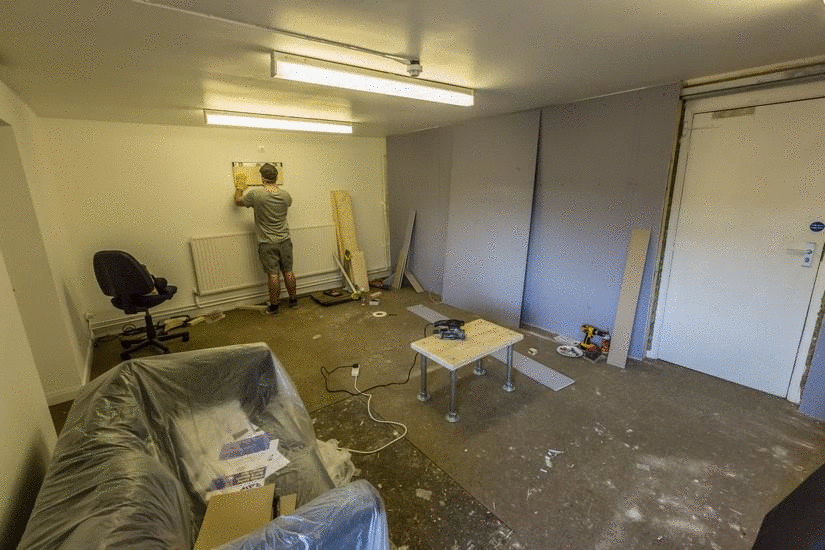

A GIF of the interior design process

The construction process was by far the most difficult and time consuming part of the project. Soundproofing involved first of all, four days of research to discover the right methods and materials to use. Once we had established our battle plan, it was time to begin.

We hired a builder to construct the wooden batons that lay the foundation for our soundproofing stud walls. They had to be built with an air gap between themselves and the original walls. We then added Rockwool acoustic insulation slabs, which aided in sound absorption and helped fill the gap between the batons. After this, we fitted resilient bars which separate the next layer from the wood batons, as well as allowing the wall to flex and absorb longer wavelengths provided by the LFE speaker in the room.

The wall was very successful in reducing disturbance to us and neighbouring businesses

Finally, two layers of acoustic plasterboard were fitted to the resilient bars and painted to match the room colours. The wall was very successful in reducing disturbance to us and neighbouring businesses. There was still a quite severe noise leakage problem from the entrance, which had to be alleviated by constructing a double door followed by a heavy acoustic curtain.



Popular on A Sound Effect right now - article continues below:



Latest releases:
  • Featuring over 100 high-quality drones and pads, this sound library evokes unsettling and gloomy feelings – perfect to create spooky atmospheres and tension building soundscapes for your project.

    This package contains layers of mallets, strings, metals, glasses, synthetic and bass sounds, giving your audience the creeps.



    The Library includes:

    Drones & Pads  – Creepy, Spooky, Horror, Mysterious

    Add to cart
  • Introducing MOTION GRAPHICS, a complete Motion Graphics sound effects library from SoundMorph!

    Motion Graphics focuses on all the elements you might need for sound design on a trailer, a cinematic scene or a visual that is heavy with motion graphics, whether it be abstract or straight forward, Motion Graphics has all the elements and textures you could think of. Motion Graphics are something all of us sound designers run into at one point or another, so this library is an excellent addition to your sound effects tool box.

    Motion Graphics was created by and in collaboration with sound designer Rostislav Trifonov (SoundMorph Elemental library contributor).

    Motion Graphics features 650 24bit/96 kHz .wav files, all meticulously embedded with Soundminer & Basehead metadata.

    The library features:

    • 450 + designed sound effects
    • 190 + source audio files
    • Whooshes
    • Impacts
    • Risers
    • Stingers
    • Low end and Sub Bass
    • Impulse Responses
    • Passbys
    • Textures – noise, grit, glitch
    • Ambiences
    • Buttons and Clicks
    • Mechanical Elements
    • Granular effects
    Add to cart
  • A library of designed ambiences, drones and background textures. Includes designed winds, underwater sounds and more abstract backgrounds.

    Ideal to help bring your horror or sci-fi productions to life or for any other scenario where you need interesting, moody, dark background textures.
    All files contain extensive metadata embedded in soundminer and broadcast wave formats for easy finding!
    38 %
    OFF
    Ends 1572476399
    Add to cart
  • City Life California Ambisonic Play Track 158 sounds included, 120+ mins total $120 $90

    Last Summer we visited California State for 2 weeks. We visited and recorded Los Angeles, Santa Monica, Santa Barbara, Morro Bay, Monterey, Carmel, Yosemite and finally San Francisco.

    We recorded in each place, just to save the beautiful soundscapes from the marvelous Route 1, capturing around 40 beautiful tracks in ambisonic format, 48Khz and 24 bits HD. As always, top quality recordings specially designed for film audio projects. The library was decoded and mixed in Dolby ATMOS.

    Included Ambix Ambisonic, 7.1.2 Atmos Bed, 5.1 and ST versions.

    Another way to get this library:
    Also included in the Surround Sound LAB Complete Bundle, featuring 25+ SFX libraries at a huge discount.
    25 %
    OFF
    Ends 1572476399
    Add to cart
  • City Life Baltic Quad Surroundings Play Track 33 sounds included, 155 mins total $69 $49

    Baltic Quad Surroundings captures the urban sounds of Riga city and its adjacent suburban and rural areas, located in the Baltics, Northern Europe. A Quadraphonic library for your next surround work. Takes are approximately 4 to 5 minutes long or even longer, so that should cover the majority of movie scenes. Please listen to the stereo samples, or download the Quad samples to hear full potential of these recordings here: Quad Recordings Demo

    Since this is our first release, we are also adding a free bonus micro library with quad recordings of passing trains that we encountered during the recording sessions. Enjoy!

    Recorded with a spaced Quadraphonic omni setup.

    The recordings were done in early spring when vegetation has not yet grown leaves, to avoid unnecessary noise pollution. Some recordings are made at night to keep bird activity to a minimum.

    This is the first library that results from a steady need for authentic and realistic surround backgrounds.

    The most common problem we have with surround sound libraries is that they are too exotic, or have too much activity. So, we took matters into our own hands and started to explore different surround recording techniques. Our recordings can be used as a surround soundscape “beds” or layers. This allows controlled additions of other elements to build up the scene and keep the viewer’s focus on the storyline.

    The goal was to record diffused sound field atmospheres and that is where a spaced Quadraphonic Omni setup shines. Human hearing does not rely only on level differences across the frequency spectrum – in fact, our auditory system heavily relies on the difference of sound wave arrival time to each ear. This is especially important with frequencies below 800 hertz.

    So spaced microphones result in more believable sound field recordings than point source recording techniques like MS or other compact systems. The phase is also not an issue, it even decreases as microphones get placed even further apart. The only downside to this technique is the big and bulky rig and that it requires individual wind protection for each microphone.

    Our future goal is to add a dedicated center channel to the recording rig and to start building up way bigger and more sophisticated libraries. Stay tuned for future releases!

    29 %
    OFF
    Ends 1572476399
    Add to cart

Want the chance to win 20 premium sound effects libraries from Sound Ex Machina?


Enter the Gigantic Giveaway here
Need specific sound effects? Try a search below:


Once the soundproofing steps had been completed, it was time to move on to interior design. From the beginning, we wanted to create an industrial revolution themed studio, which has cultural links to our home in Manchester, England. We went for neutral colours in the wall paint, absorbers / bass traps material and shelving to allow more specific elements to stand out. We also built our own studio furniture to save costs and create a more authentic industrial look. Using reclaimed wood boards, coach bolts and scaffolding poles, we constructed a fairly basic structure to build upon. Adding wood stain helped blend the furniture into the room a little better and bring out the natural wear of the desks.

We wanted to create an industrial revolution themed studio, which has cultural links to our home in Manchester, England

Next, we searched for various antiques to place in the room to finalise the look. These included a chest from the 1800s, various industrial cogs, classic British books to place on our bookshelves, and of course, a plant. It was finally time to install our equipment…

One huge workflow element we wanted to implement was the use of four screens. We fitted two identical monitors, one for the Pro Tools edit window, one for sound effects searching and miscellaneous tasks. We also fitted a 58-inch TV for client video playback. Finally, we decided to choose the Slate Raven MTi2 for our studio mix controller, as it had the most features and forward thinking workflow in its price range, allowing for custom macros and a touchscreen workflow.

We also had to create a 5.1 mixing environment, which meant that we would need a suitable interface and monitoring. We chose the Presonus Quantum for it’s low latency thunderbolt connectivity, ability to group outputs for up to 7.1 monitoring and it’s high quality digitally controlled preamps. We chose the HEDD Type 05 for satellites and ADAM Sub8 for our LFE. After testing one of our mixes on multiple systems, we found these to be the most transparent and comfortable to work with by far. They also have a phase and frequency linearization plugin for Pro Tools to help digitally align the speakers.

One of the other largely important tasks was to create a workstation PC that could handle our heavy Sound Design sessions. We got a custom 3XS system from Scan computers, which had all the bells and whistles needed to bring the studio build together. We spent most of our money on the key components, including the CPU and Motherboard, leaving room for future expansion on the 2 SSD drives and 32GB RAM.

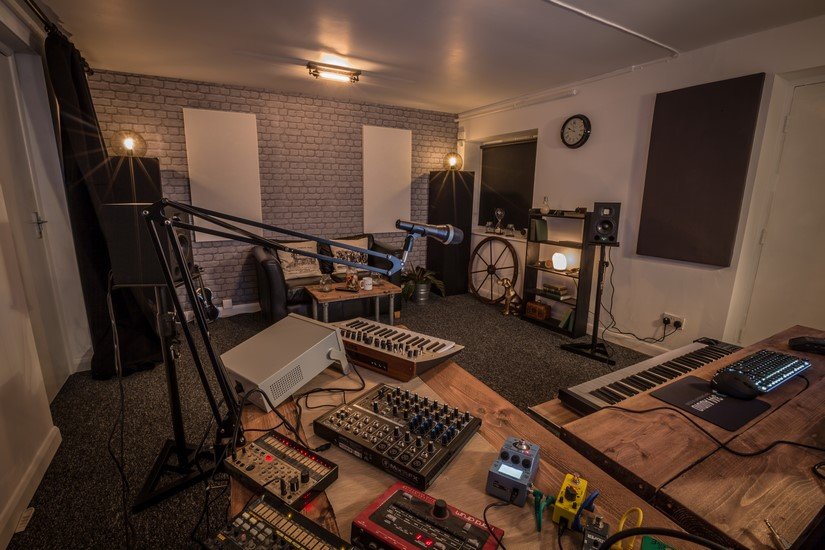

An overview of the backside of the studio

The inclusion of a large MIDI keyboard, synthesizers and microphones were a crucial inclusion for creative purposes. We picked up a Korg Minilogue, mixer and guitar pedals for creating ominous drones and synthesized effects. Microphone-wise, we grabbed an NTG3 for Foley/ADR, an Aston Origin for Voice Overs and a Zoom H6 for recording sound effects, along with some contact mics and coil pickups. We also grabbed a dynamic mic for creating dialogue futz effects through the guitar pedals.

Finally, for acoustic treatment, we built 4 soffit bass traps to control low frequency build up in the room corners. These were made from thin timber wood uprights and particle board panels for the top and bottoms. The interiors were filled with acoustic rockwool. We then covered them with a breathable fabric. Our absorbers were a similar approach, with staples to attach the fabric tightly around the wood.


Rebuilding Your Studio: Tips and Shortcuts

Some of the lessons learned during the build process were invaluable, and we would love to share these with you. Most of all, the larger lesson here is that doing things yourself can garner much more worthwhile results, whereas hiring others can be overly expensive and may not save much time.

There has been no better time than now to build your own studio

Finding the right space from the beginning, in a good location with minimal traffic noise and disturbances will stand you in good stead for the future of your build and business operations.

Materials are cheap, and the internet is an unlimited resource for acoustic treatment advice, product reviews and the like. There has been no better time than now to build your own studio.

A crocodile head and a lightbulb full of nuts, bolts, and screws

Another piece of advice to readers would be to make your studio unique to your business. We included an industrial revolution theme as it’s something that we and many others are fascinated with in our local history. Use that as inspiration for how your studio could stand out from the crowd.

One element that we really underestimated was the soundproofing, which all in all took about 2 weeks to complete and was incredibly stressful. If we could go back and do it again with the knowledge gained, the process could likely have been reduced to less than a week. Do your research well in advance, and be realistic about the results you can achieve.

Please feel free to get in touch with us if you want any specific advice on materials or the build process. You can get in touch via 344audio.com.

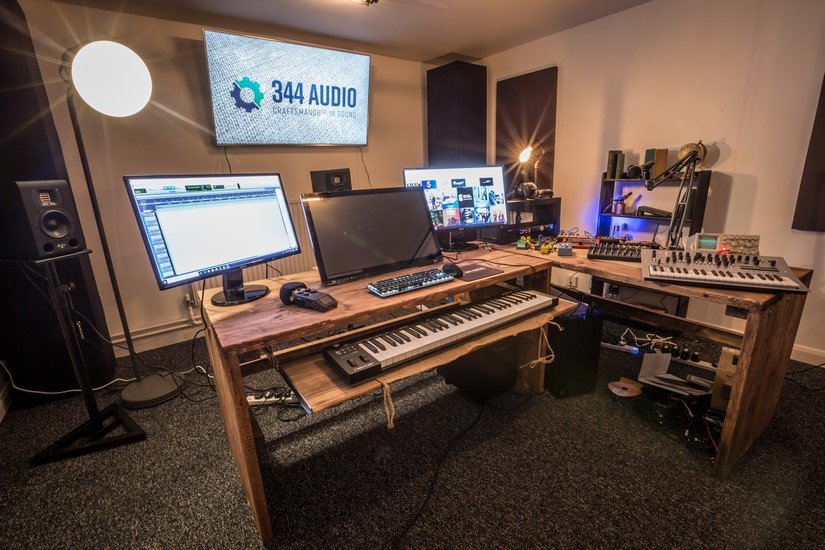

A comfortable, professional workspace at 344 Audio.

A big thanks to Alex Gregson for giving us a tour of their new facilities over at 344 Audio!
